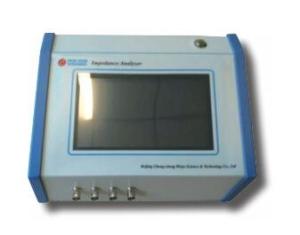

Ultrasonic Impedance Analyzer for Testing Ultrasonic transducer and Piezo ceramics
Resonance Frequency: Fs
Half Power Frequency: F1 and F2
Maximum real admittance at Fs: Gmax
Dynamic Resistance: R1
Anti resonance frequency: Fp
Mechanical quality factor: Qm
Free capacitance: CT
Dynamic inductance: L1
Dynamic capacitance: C1
Static capacitance: Co
electromechanical coupling coefficient: Keff and Kp
Maximum real impedance at Fp: Zmax
| Type | C220 | C320 |
| Frequency Range | 1KHZ-500Khz | 1Khz-1Mhz |
| Measurement Index | All parameter, graphics |
| Measurement Accuracy | < 1% | < 0.5% |
| Measurement Speed | 10 second/piece(equivalent to 600 scan dots ) | 5 second/piece(equivalent to 600 scan dots ) |
| Frequency Accuracy | ±15ppm | ±5ppm |
| Phase Resolution | 0.15 degree | 0.15 degree |
| Enviroment temperature | 10-40 cº | 10-40 cº |
| Impedance Range | 1Ω～1MΩ | 1Ω～1MΩ |
| Frequency Step | 0.1Hz～any | 0.1Hz～any |
| Application | Ultrasonic equipment testing, ultrasonic cleaning, ultrasonic welding, ultrasonic medical | Inspection production line of piezoelectric ceramic below 1MHzø |
Service
Your inquiry related to our product & price will be replied within 24hours.
· Well-trained & experienced staff are to answer all your inquiries in English of course.
· Working time: 8:30am - 5:30pm, Monday to Friday (UTC+8).
· OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
· Your business relationship with us will be confidential to any third party.
· Good after-sale service offered, please get back if you got question.
Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional
manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new
product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy
task. This product has been widely used in distillation, mix and mill for various chemical procedures
and has received much praise from our customers.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.
Certification:
CE, ISO9001, ROSH
